Yanzeo Omni-Directional High Speed Desktop 20 Lines RS232 1D BarCode Scanner for Supermarket Warranty 12 Months

Yanzeo Omni-Directional High Speed Desktop 20 Lines RS232 1D BarCode Scanner for Supermarket Warranty 12 Months
  • Price
  • US $60-65/piece
  • Model
  • RS232
  • Unit Price
  • Order QuantityUnit PriceDelivery period
    1 - 10US $65.00 /piece7 day
    11 - 50US $60.00 /piece7 day
  • Quantity
  • piece
Detail Information
Features
● Use the latest high-performance hardware decoding chip to decode various complex 1D barcodes

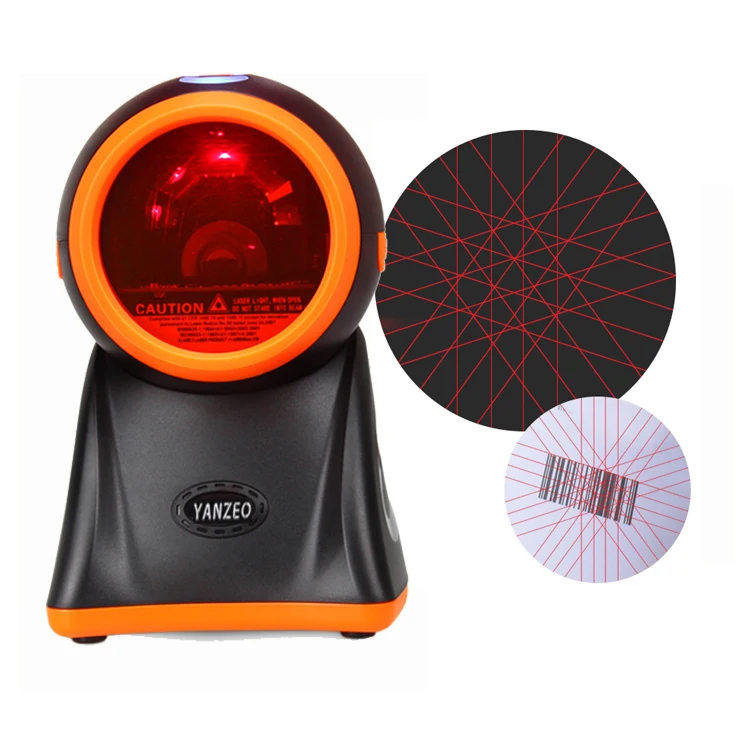

● 20 scanning lines, 5 scanning directions, scann barcode fast and efficiently
● Support automatic sleep and wake-up function to improve working life of core component

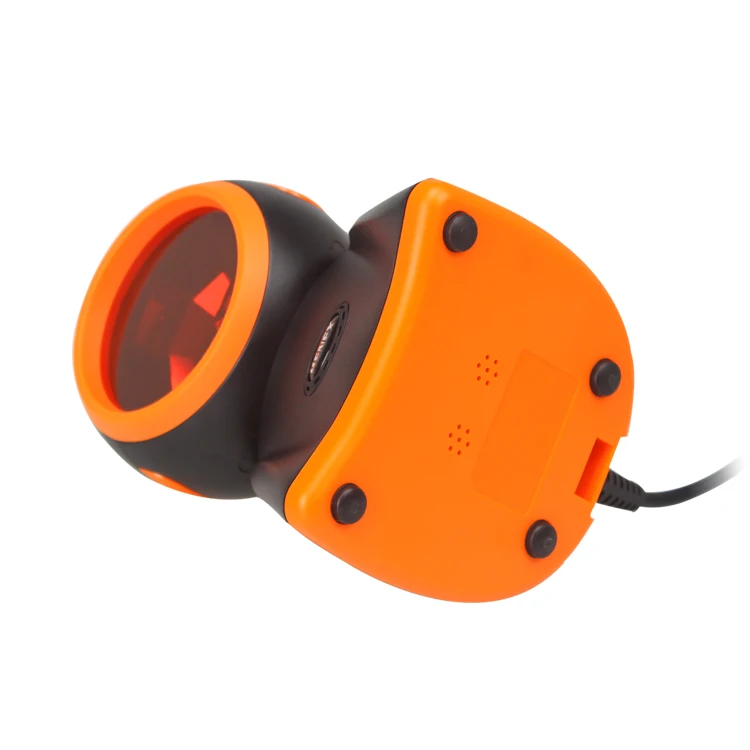

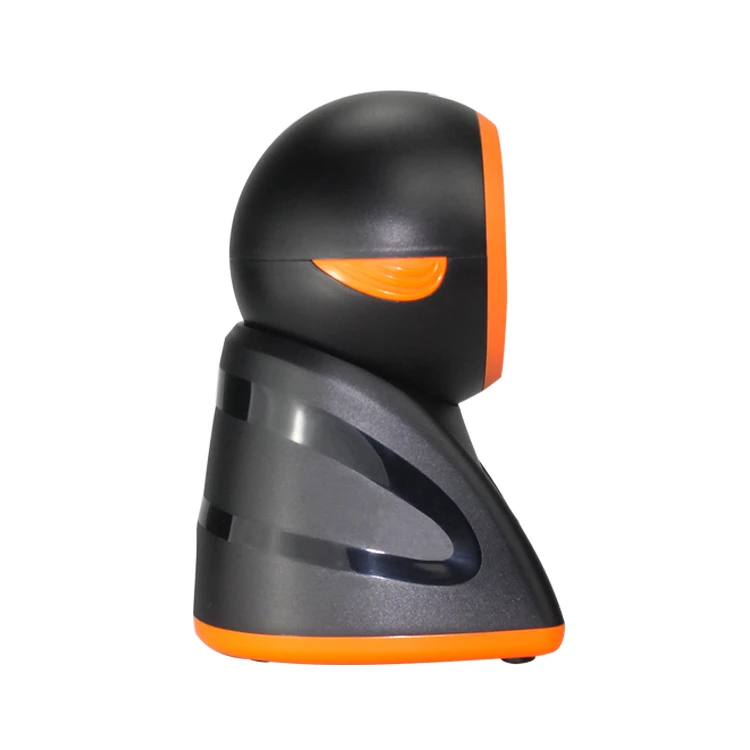

● New and stylish appearance, swivel base for a variety of scanning applications
● Super cool blue and red two-color LED indicator and double beeper sound to deal with various noisy environments
● The wire is made of high temperature resistant material and high quality inner copper wire to meet various environmental requirement and with longger working life.
● Support multiple communication interfaces, plug and play, and automatically match the device automatically

Application field
Mainly used in large supermarkets, shopping malls, specialty stores (pharmacies, clothing stores, smoke hotels, jewelry stores), etc.


working parameter
light source:visible laser diode 650nm
scan depth(depth of filed):0~200mm @ UPC/EAN PCS=90%
scan angle:5 Scanning direction
scan lines:20 lines
scan speed:1650 scans/second
minimum resolution:0.1mm
print contrast ≧30% (UPC/EAN 100%)
LED indicators:Two color LED(red&blue)
Sound:Two Programmable Beeper
Host system interfaces HID USB, USB virtual COM, RS232

Physical parameter
Size LxWxH:114mm*114mm*156mm
Weight 290g(without cable)
Cable standard 1.8M
Power parameter
Voltage 5vdc+/-10%
EMC
Laser level meet CDRH Class IIa, IEC 60825-1 Class 1

Barcode Capability
UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded

Package List:
  • 1 * 1D Barcode Scanner

  • 1 * USB Cable

  • 1 * User Manual(English)

  • 1 * Warranty Card



Every item is strictly tested before shipping



Need more please contact us. Will provide the best price.
We are a manufacturer and looking for agents in various countries around the world. OEM orders and global cooperation are available.
